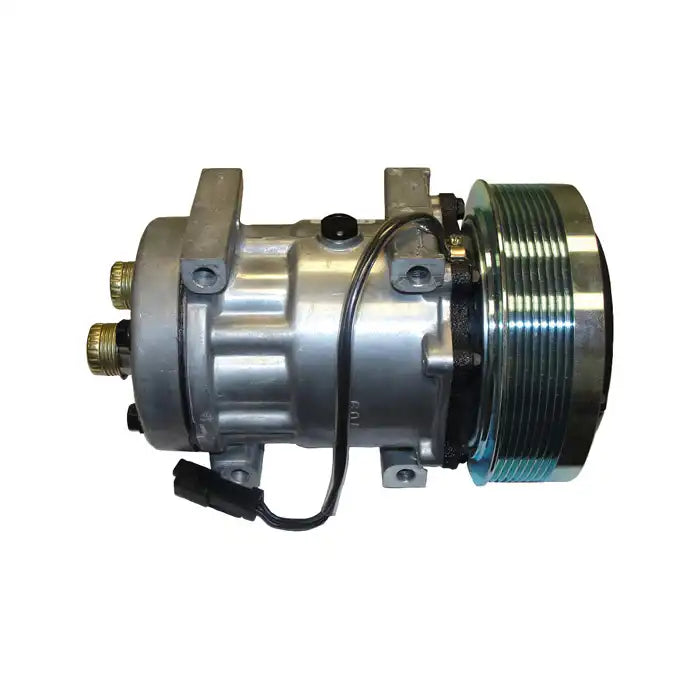

A/C Compressor 86992688 for New Holland Tractor TG230 T8020 TG275 T8030 T8040 TG305 TG215 T8050 TG245 T8010

SD7H15 A/C Compressor 86992688 for New Holland Tractor TG230 T8020 TG275 T8030 T8040 TG305 TG215 T8050 TG245 T8010

TYPE:
A/C Compressor, Air Conditioner Compressor, Air Conditioning Compressor

Part Number:
86992688

Specification:

Compressor Family: SD7H15
Style: Heavy Duty
Compressor Mount Type: Direct
Rotation Direction: CW
Cylinder Head: MD
Port Angle: Horizontal
Head Port Style: 1 X 14
Clutch Diameter: 152 mm ~ 6 inch
Clutch Style: With Dust Cover
Belt Type: Serpentine
Number of Grooves: 8
Voltage: 12
Coil Connector: 1 Wire Female Packard #12010996
Coil Position: 12 O'clock
Oil Type: SP15 or PAG 100
Oil Qty: 285cc

Applications:
Fit For New Holland Tractor:TG230, T8020, TG275, T8030, T8040, TG305, TG215, T8050, TG245, T8010
