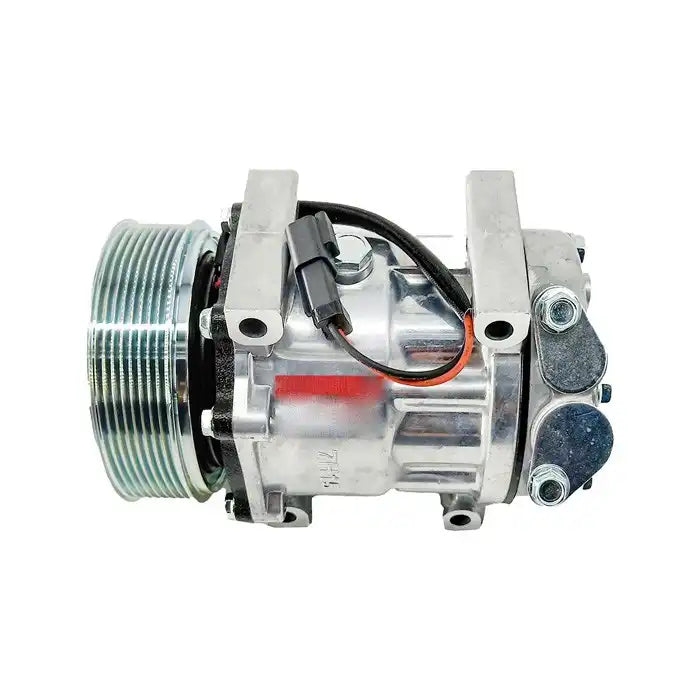

A/C Compressor 320/08562 7232/42840 for JCB Backhoe and Wheel Loader

SD7H15 A/C Compressor 320/08562 7232/42840 for JCB Backhoe and Wheel Loader

Type:
A/C Compressor, Air Conditioner Compressor, Air Conditioning Compressor

Replace Part Number:
320/08562,7232/42840,32008562,723242840,320-08562,7232-42840,08562,
ACP730,148203,1103507,F696002114,5513105,6513105,7513105,2008203,14SD8203,
14SD8203NC,CO2242CA,509642,5096423,8203,40405343,1.1445,K11445,11445

Specification:
Sanden Number: 8203
Compressor Family: SD7H15
Style: Heavy Duty
Compressor Mount Type: Direct
Rotation Direction: CW
Cylinder Head: WP
Port Angle: Vertical
Head Port Style: Pad O-Ring
Clutch Diameter: 119 mm ~ 4 and 11/16 inches
Clutch Type: With Dust Cover
Belt Type: Serpentine
Number of Grooves: 8
Voltage: 12

Applications:
Fit for follwing models:
JCB BACKHOE LOADER:
1CX,2CX,3CX,4CX,2CXS,2CXSL,2CXL
JCB TELESCOPIC HANDLER:
531,535,535-125,535-140,535-95,536-60,540-140,540-170,541,541-70,550-140,550-170
