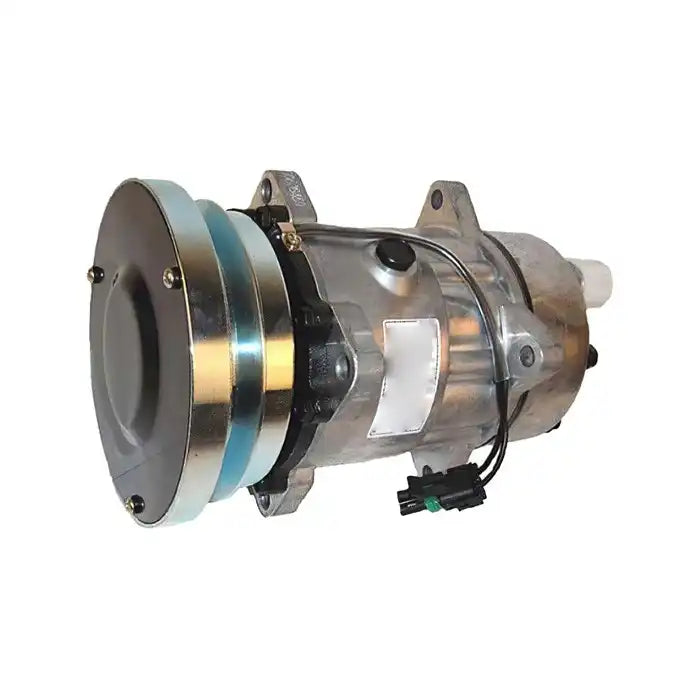

A/C Compressor 114-9484 for Caterpillar CAT Challenger 35 45 55 Agricultural Tractor 3116 3126 Engine

A/C Compressor 114-9484 for Caterpillar CAT Challenger 35 45 55 Agricultural Tractor 3116 3126 Engine

Type:
Air Conditioner Compressor

Part Number:
CA1149484,114-9484,1149484
Sanden Number 4661 Replaced By Sanden Number 4480

Cross Reference:
AUTO CLIMA 40405285
CLAAS 3602390
CTR 1201502
SANDEN 4480, 4661, SD4480, SD4661

Applications:
Caterpillar Agricultural Tractor: Challenger 35, Challenger 45, Challenger 55
Engine:3116, 3126

Specification:
Compressor Family: SD7H15
Style: Sealed Heavy Duty
Compressor Mount Type: Ear
Rotation Direction: CW
Cylinder Head: KC
Port Angle: Horizontal
Head Port Discharge Size: 3/4" Male Threaded
Head Port Suction Size: 7/8" Male Threaded
Clutch Diameter: 138 mm ~ 5 and 7/16 inches
Clutch Type: Dust Cover
Belt Type: V-Belt
Number of Grooves: 1
Voltage: 12
Coil Connector: 2 Wire Male Packard #12015792
Coil Position: 12 O'clock
Oil Type: SP15 or PAG 100
Oil Qty: 300cc
Refrigerant: R134a
