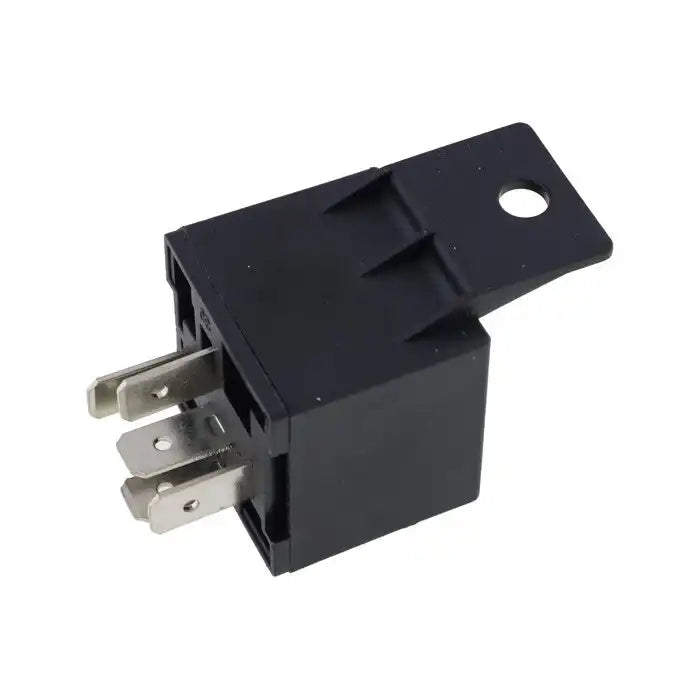

5 Terminal Lawn Mower Starter Relay Ariens 00432101 Craftsman Husqvarna 532109748 109748X Exmark 98-7249 12V

5 Terminal Lawn Mower Starter Relay Ariens 00432101 Craftsman Husqvarna 532109748 109748X Exmark 98-7249 12V

Regular price $43,212.00 USD
Regular price $0.00 USD Sale price $43,212.00 USD
Sale Sold out
Shipping calculated at checkout.

5 Terminal Lawn Mower Starter Relay Ariens 00432101 Craftsman Husqvarna 532109748 109748X Exmark 98-7249 12V

Part Number:
Ariens 00432100
Ariens 00432101
Ariens 03042800
Craftsman 109748X
Craftsman 532109748
eXmark 1-643275
Grasshopper 104-026-401
Gravely 00432100
Gravely 00432101
Gravely 040216
Husqvarna 532109748
Husqvarna 539102914
Rotary 31-9369
Rotary 9369
Stens 430-300
Walker 6942

Applications:
Ariens: EZR1440, EZR1540, EZR1640, EZR1648 and EZR1742
Exmark: Lazer Z, Serial No. 102,000-370,000 with 52", 60" and 72" deck
Gravely: Promaster 30-H, 50, 200, 300 and 400
Husqvarna: IZ4821T, IZ6125T, LZ5227TXP and LZ6127T
Toro: 60" and 72" Z 500'S Z Master

Specification:
Coil Voltage: 12 VDC Relay
Contact Form: 1 Form C (SPDT-NO, NC)
Contact Current Rating: 50 A
Coil Resistance: 90 Ohms
Coil Current: 133 mA
Switching Voltage: 28 VDC
Mounting Style: Socket
Contact Material: Silver Tin Oxide (AgSnO)
Series: 896H
Contact Form: SPDT (1 Form C)
Contact Termination: Quick Connect Terminal
Power Consumption: 1.6 W
