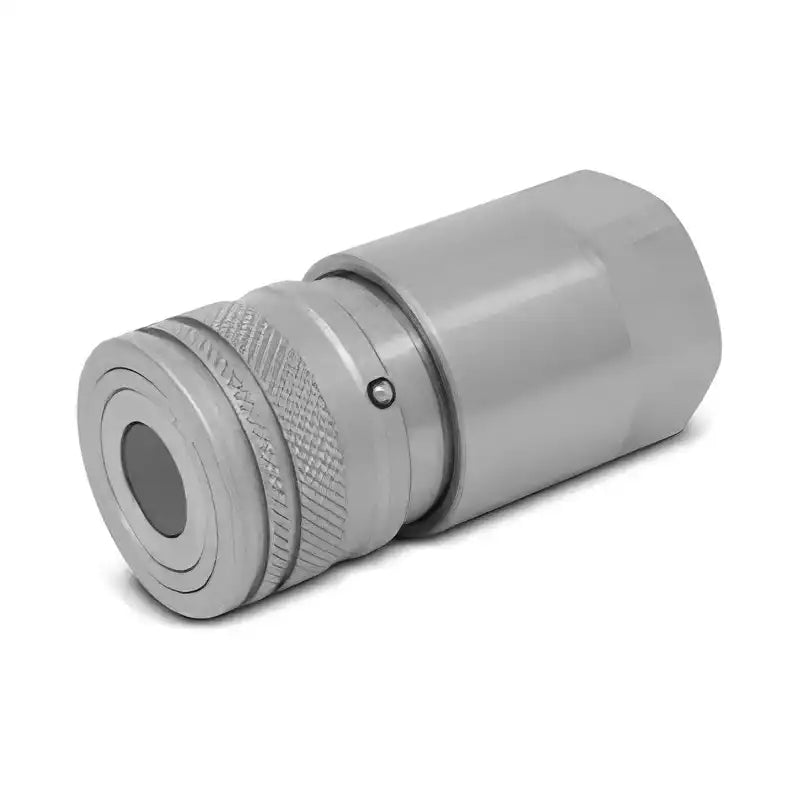

1/2 Flat Face Hydraulic Quick Connect Couplings Set With Dust Caps FF12-08N-SET HT4F4-4HTF4 for Bobcat Skid Steer
1/2 Flat Face Hydraulic Quick Connect Couplings Set With Dust Caps FF12-08N-SET HT4F4-4HTF4 for Bobcat Skid Steer
1/2" Flat Face Hydraulic Quick Connect Couplings Set With Dust Caps FF12-08N-SET HT4F4-4HTF4 for Bobcat Skid Steer
Part Number:
Parker FE Series FEM-502-8FP, FEM-501-8FP
Faster FFH Series FFH08 12NPT M, FFH08 12NPT F
Snap Tite 74 Series 74N8-8F, 74C8-8F
Stucchi FIRG Series 800801007, 800801006
Dixon HT Series HT4F4, 4HTF4
DNP PLT4 Series FF-HPG-08-08N-NPT, FF-HPG-08-08C-NPT
Safeway FFE49 Series FFE491-4, FFE495-4
Eaton Aeroquip FD89 FD89-1002-08-08, FD89-1001-08-08
Tomco FE Series EP4-26, EC4-26
Specification:
Body Size: 1/2�Body
Thread Size: 1/2�NPT
5,076 PSI rating
12 GPM Nominal Flow Rate
23.78 GPM Max Flow Rate
Male Face Diameter: 0.94�(24.5mm)
Diameter
Male Hex: 1.34�(34mm)
Female Hex: 1.42�(36mm)
Application:
skid steers loaders including Bobcat, Case / New Holland, Kubota, and many others
Features:
Locking sleeve helps prevent accidental disconnects
Zinc-Nickel plating provides superior protection from corrosion
Compact profile with high flow performance
Harden steel construction with anti-corrosive plating
Sleeves are hardened to resist deformation and maximize life
Valve design that allows for a minimal pressure drops and one hand operation
Seals are rated for operating temperatures up to 250°F
Included:
Male Coupler
Female Coupler
